Exiscan XA-320-L25  Thermal Imager

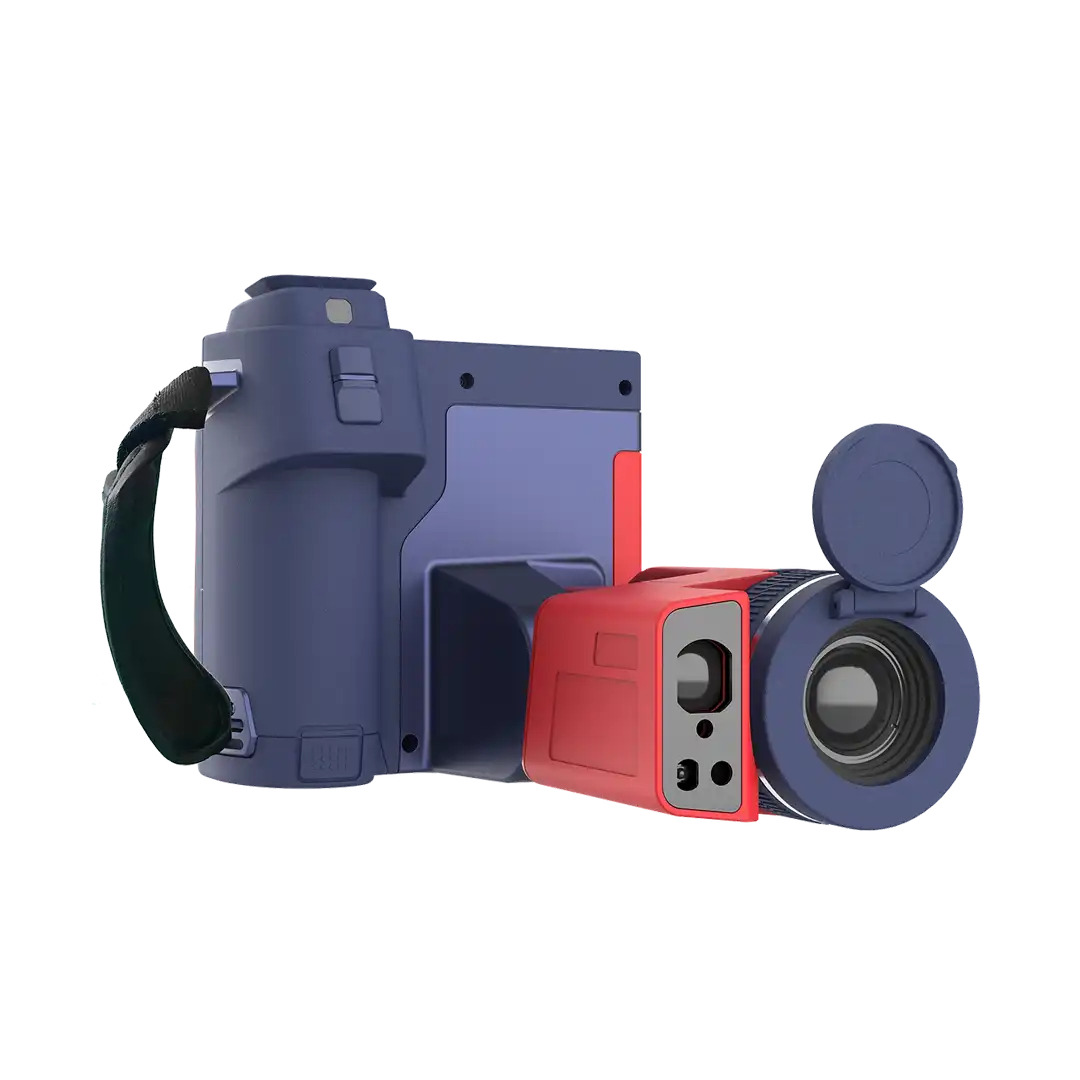

  • Exiscan XA-320-L25  Thermal Imager

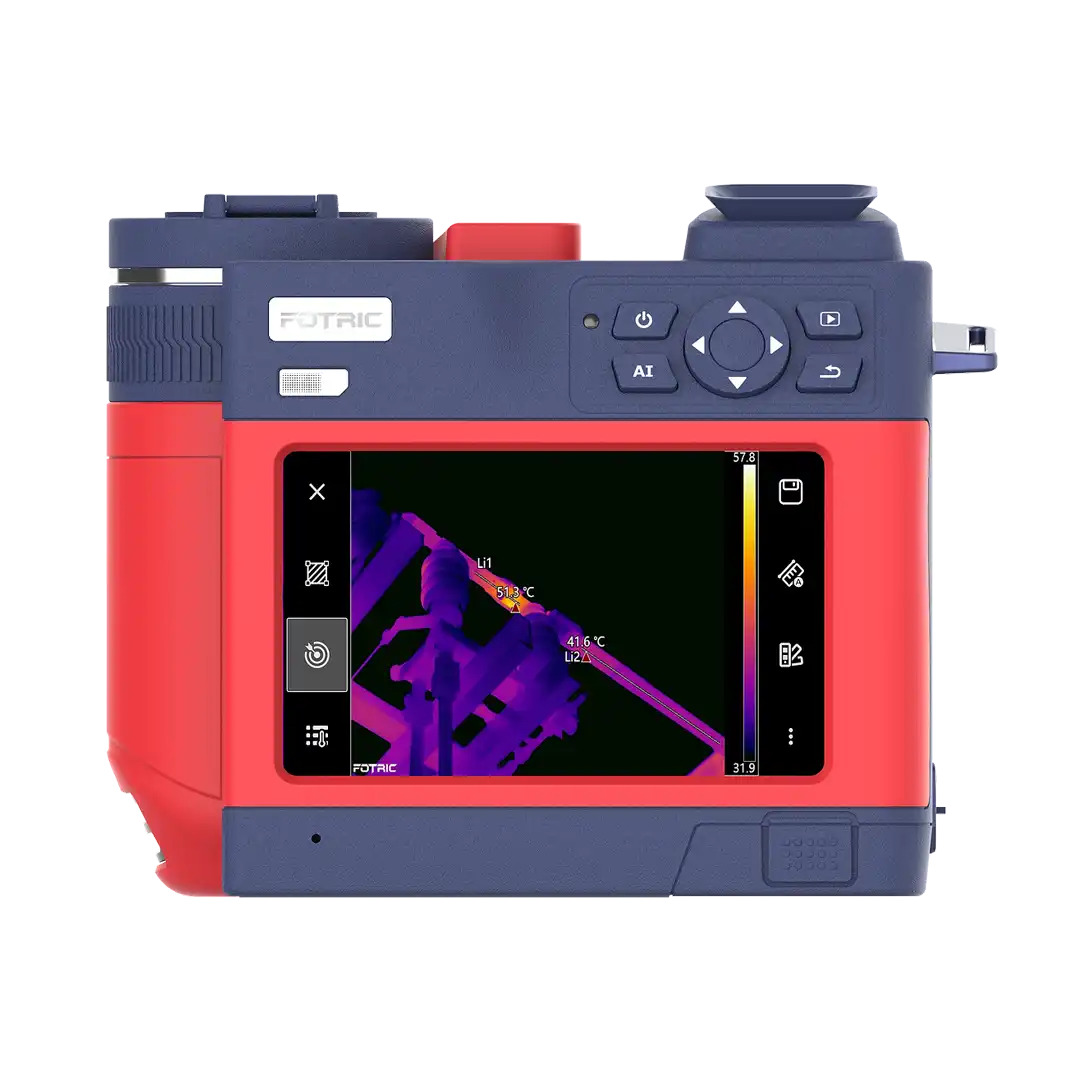

  • Exiscan XA-320-L25  Thermal Imager Alterante Angle

The Exiscan XA-320-L25 is a premium entry-level thermal camera designed with an articulating lens arm for easier targeting in tight spaces. Offering dependable accuracy and clear imaging, it gives professionals an accessible solution for detecting hidden problems in electrical, building, and mechanical systems.

  • Resolution: 320 x 240
  • Temp Range Min/Max: -4/1202 F
  • Frame Rate: 30Hz
  • Laser-Assisted Auto Focus
Price: $6,499.00
Resolution320 x 240
SuperResolution640 x 480
Focus Mode(s)TurboFocus system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus
SoftwareNaviPdM, AnalyzIR (Free unlimited licenses)
Temp. Measurement Range-4 to 248 F; 32 to 1202 F
Temp. Measurement Accuracy+/- 3.6 F or +/- 2% for other temp range (ambient temp at 77 F)
Thermal Sensitivity30mk (0.054 F) @ 86 F
Frame Rate30Hz
Field of View (FOV)25 x 19 Deg.
Downloads
