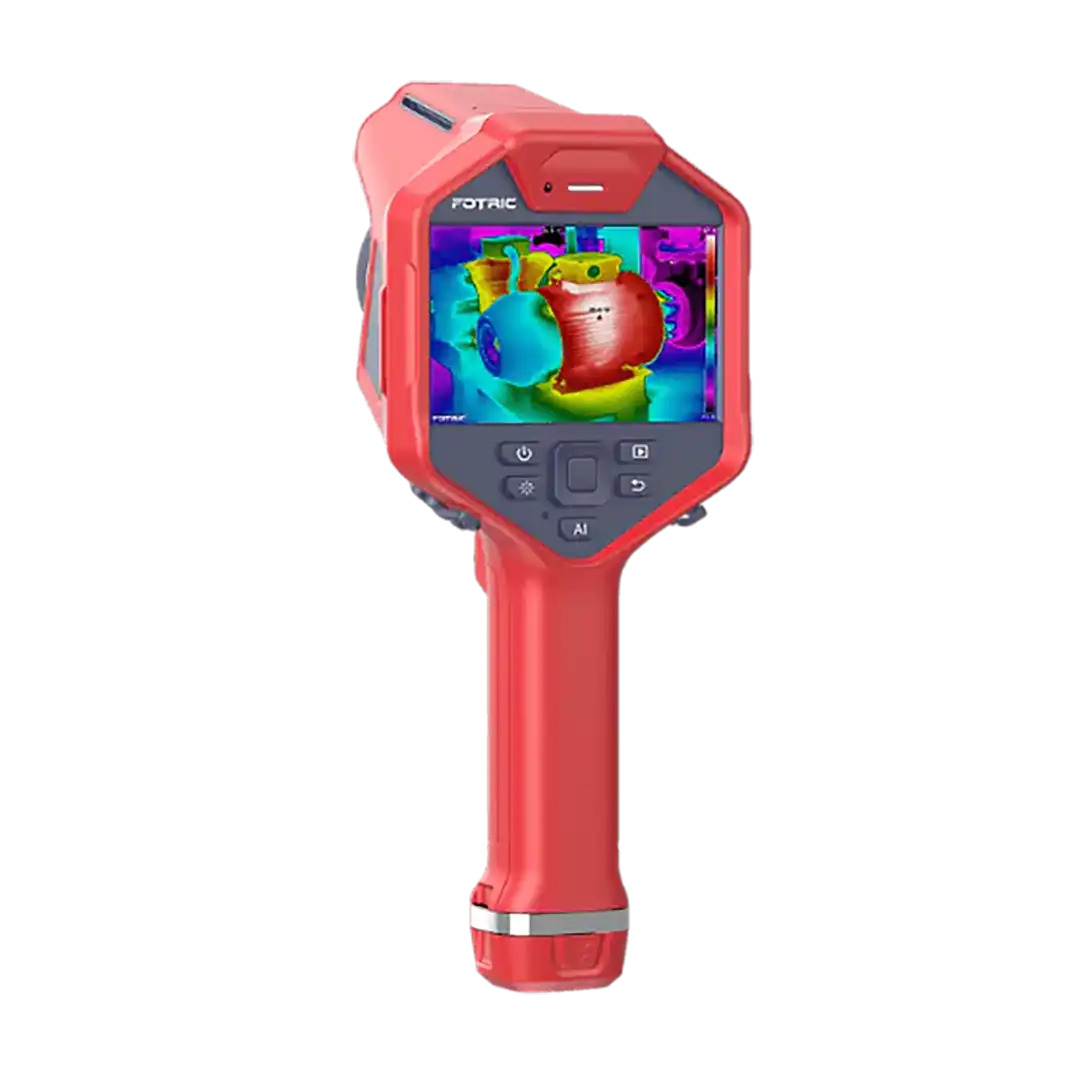

Exiscan XF-384-L25  Thermal Imager
  • Exiscan XF-384-L25  Thermal Imager

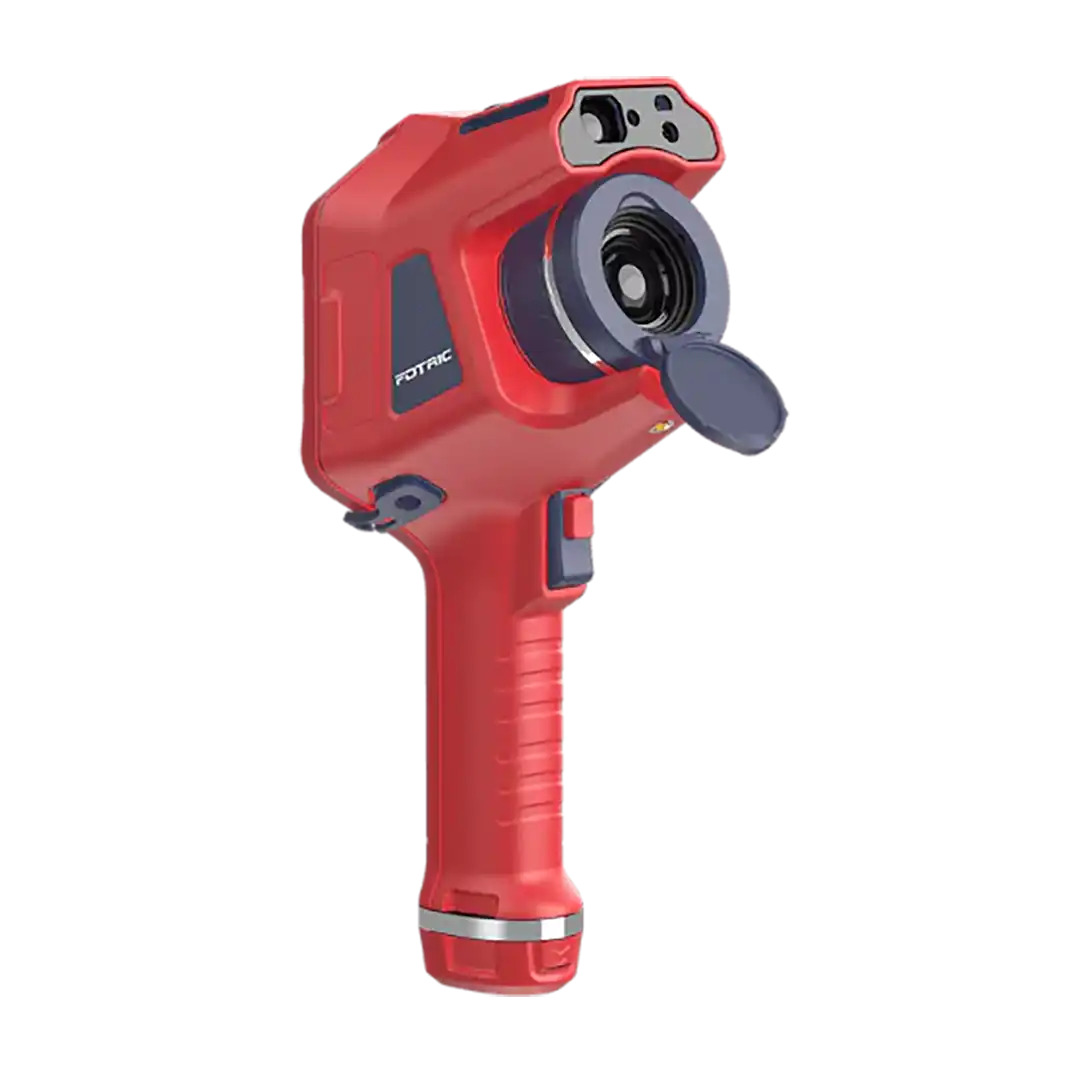

  • Exiscan XF-384-L25  Thermal Imager Alterante Angle

The Exiscan XF-384-L25 thermal camera delivers precise, high-resolution imaging for accurate temperature analysis. Designed for professional inspections, it captures subtle anomalies to prevent costly failures. With advanced features, intuitive operation, and rugged durability, this unit ensures reliable performance in electrical, mechanical, and building diagnostics.

  • Resolution: 382 x 288
  • Temp Range Min/Max: -4/2822 F
  • Frame Rate: 30Hz
  • Laser-Assisted Auto Focus
Price: $5,299.00
Resolution382 x 288
SuperResolution768 x 576
Focus Mode(s)TurboFocus system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus
SoftwareNaviPdM, AnalyzIR (Free unlimited licenses)
Temp. Measurement Range-4 to 248 F; 32 to 1202 F; 572 to 2822 F
Temp. Measurement Accuracy+/- 3.6 F or +/- 2% for other temp range (ambient temp at 77 F)
Thermal Sensitivity40mk (0.072 F) @ 86 F
Frame Rate30Hz
Field of View (FOV)25 x 19 Deg.
