Exiscan XF-640-L25  Thermal Imager

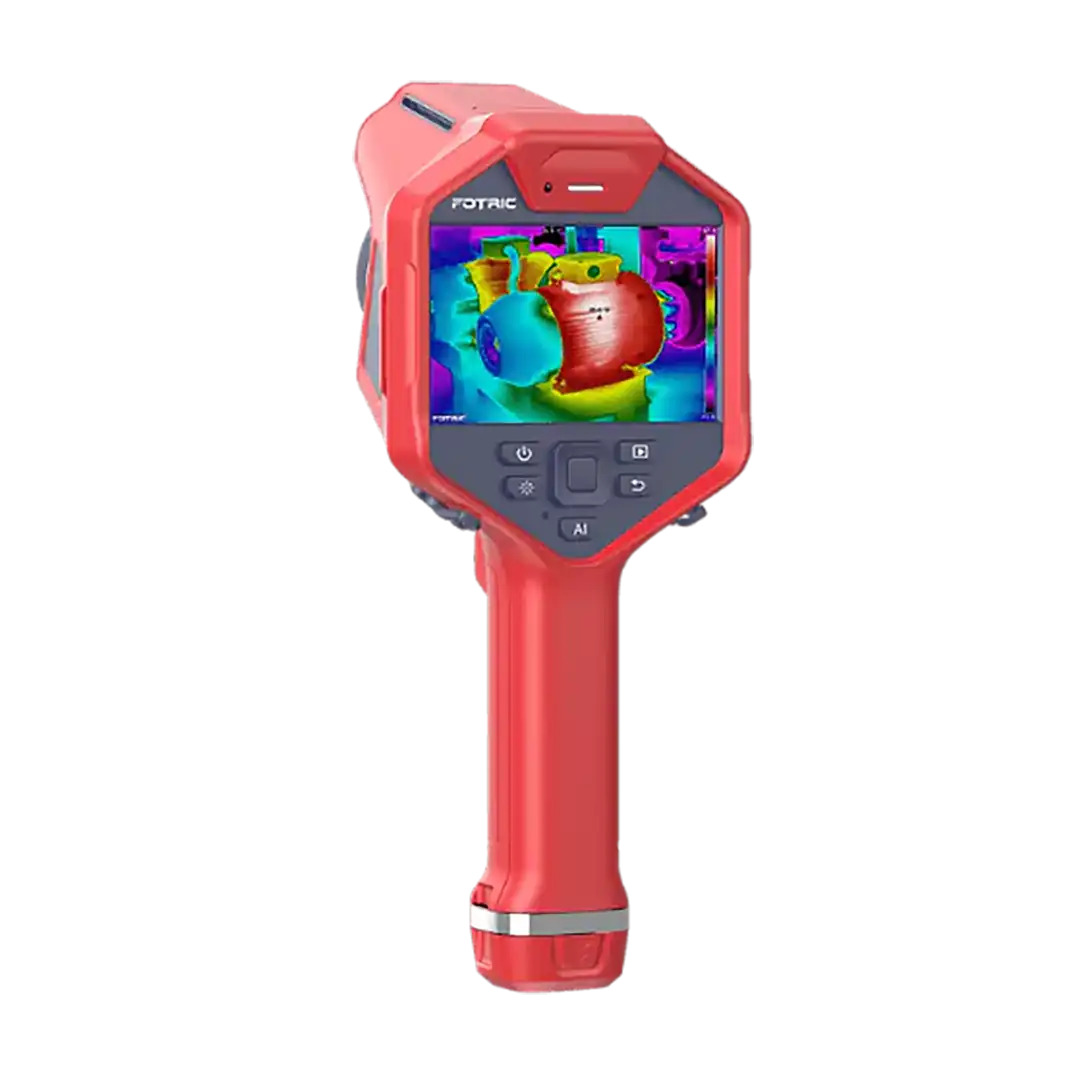

  • Exiscan XF-640-L25  Thermal Imager

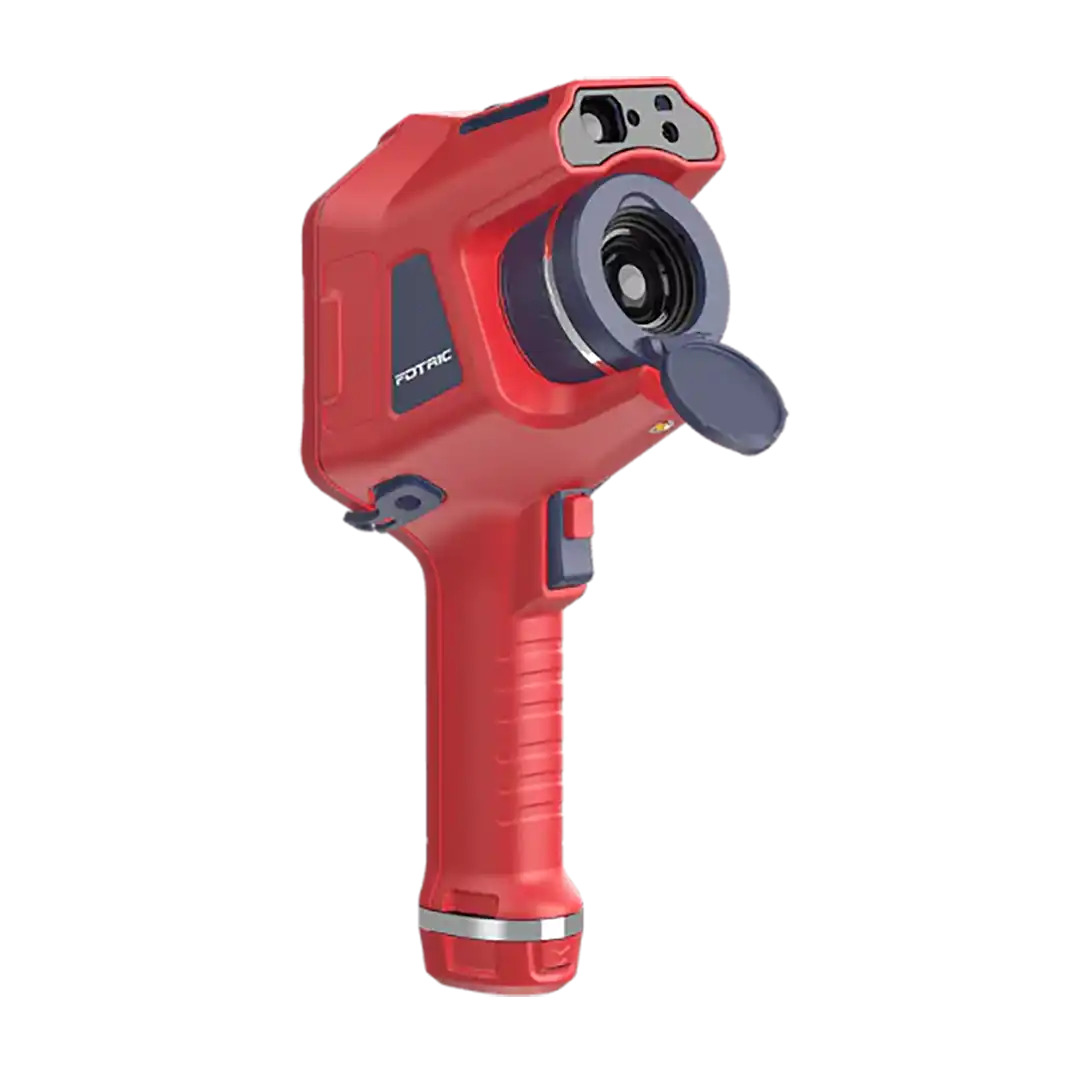

  • Exiscan XF-640-L25  Thermal Imager Alterante Angle

The Exiscan XF-640-L25 thermal camera delivers exceptional imaging resolution and precise temperature measurement for demanding inspections. Designed for professionals, it identifies subtle anomalies to prevent costly failures. With advanced features, rugged durability, and intuitive operation, this unit ensures reliable performance across electrical, mechanical, and building applications.

  • Resolution: 640 x 480
  • Temp Range Min/Max: -4/2822 F
  • Frame Rate: 30Hz
  • Laser-Assisted Auto Focus
Price: $9,999.00
Resolution640 x 480
SuperResolution1280 x 960
Focus Mode(s)TurboFocus system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus
SoftwareNaviPdM, AnalyzIR (Free unlimited licenses)
Temp. Measurement Range-4 to 248 F; 32 to 1202 F; 572 to 2822 F
Temp. Measurement Accuracy+/- 3.6 F or +/- 2% for other temp range (ambient temp at 77 F)
Thermal Sensitivity30mk (0.054 F) @ 86 F
Frame Rate30Hz
Field of View (FOV)25 x 19 Deg.
