The James Instruments Cor Map II Corrosion Locator Complete System, is an advanced system for corrosion potential data acquisition and analysis, allowing the user to quickly identify areas of probable corrosion in the field.

• Locate corroding steel reinforcement
• Repair cost estimation
• Digital mapping feature
• Ruggedized Electronics allows rapid analysis of data in the field or office
• Temperature and humidity sensors facilitate inclusion of environmental conditions in data analysis

The James Instruments Digital Rebound Hammer Basic System, is an advanced and completely automated system for estimating concrete compressive strength. Its calculation, memory and recording functions allow for quick, easy and accurate test results.

• Memory and recording functions allow for quick, easy and accurate test results
• Modern microprocessor technology allows the data to be stored, printed and transferred to a personal computer for further analysis, or inclusion in your reports
• Integrated alpha numeric digital display, and control panel
• Discard values for multiple test results can be set
• Impact energy level of 2.2 Nm

The James Instruments Digital Rebound Hammer Complete System, is an advanced and completely automated system for estimating concrete compressive strength. Its calculation, memory and recording functions allow for quick, easy and accurate test results. Field printer included.

• Memory and recording functions allow for quick, easy and accurate test results
• Modern microprocessor technology allows the data to be stored, printed and transferred to a personal computer for further analysis, or inclusion in your reports
• Integrated alpha numeric digital display, and control panel
• Field printer mounts on the belt for ease of use
• Impact energy level of 2.2 Nm

The James Instruments Emodumeter, is used for resonant frequency testing and determining young's modulus and poisson's ratio.

• Determine: Young's Modulus, Modulus of Rigidity, Poissons Ratio, Damping Constant
• Automatic identification of the resonance frequency
• Large easy to view display for data analysis
• Data can be stored and uploaded to a PC for further analysis

The C-CL-2012 is a pack of extraction and colored calibration liquids for use with the James Instruments Chlorimeter and includes:

• 12 jars of 20ML extraction Liquid
• 5 jars of Colored Calibration Liquid

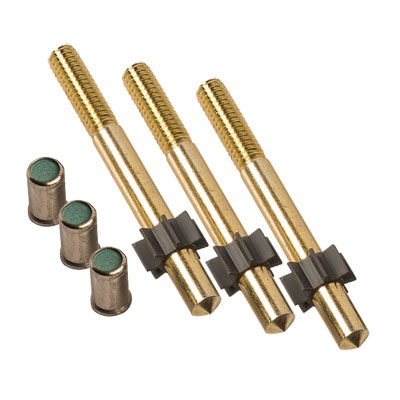

The James Instruments U-PRS-03 gold probes are Windsor Probe consumables supplied as a case of 75 probes with 75 power loads for testing lightweight concrete.

• Recommended for lightweight concrete

The James Instruments U-PRS-03-03 gold probes are Windsor Probe consumables supplied as a pack of 3 probes and power loads for testing lightweight concrete.

• Recommended for lightweight concrete

The James Instruments Low Impact Digital Rebound Hammer Basic System, has a number of specialized applications. It is typically used for thin concrete specimens between 50mm (2") and 100mm (4") thick, such as sidewalks, bridgedecks and some driveways. The unit can be used on plaster and morar as well to verify consistancy. The Test Hammer is also used on brittle rock cores where a larger impact will damage the specimen.

• Low impact energy ideal for brittle specimens (0.735 Nm)
• Minimum verifiable strength is 1400 psi (10 MPa) to 9000 psi (62 MPa)
• Paper and film testing are a significant application for the low impact manual test hammer
• Integrated alpha numeric digital display, and control panel

The James Instruments Low Impact Digital Rebound Hammer Complete System, has a number of specialized applications. It is typically used for thin concrete specimens between 50mm (2") and 100mm (4") thick, such as sidewalks, bridgedecks and some driveways. The unit can be used on plaster and morar as well to verify consistancy. The Test Hammer is also used on brittle rock cores where a larger impact will damage the specimen.

• Low impact energy ideal for brittle specimens (0.735 Nm)
• Minimum verifiable strength is 1400 psi (10 MPa) to 9000 psi (62 MPa)
• Paper and film testing are a significant application for the low impact manual test hammer
• Integrated alpha numeric digital display, and control panel
• Field printer mounts on the belt for ease of use

The James Instruments Low Impact Manual Rebound Hammer, is the traditional instrument used for the non-destructive testing of hardened concrete. This easy-to-use instrument provides a quick and simple test for obtaining an immediate indication of concrete strength in various parts of a structure.

• Low impact energy ideal for brittle specimens
• Impact energy level of 0.54 ft. lbs. (0.735 Nm)
• Minimum verifiable strength is 1400 PSI (10 MPa) to 9000 PSI (62 MPa)
• Ideal for testing small components

The James Instruments Manual Rebound Hammer, is the traditional instrument used for the non-destructive testing of hardened concrete. This easy-to-use instrument provides a quick and simple test for obtaining an immediate indication of concrete strength in various parts of a structure.

• Impact energy level of 1.6 ft. lbs. (0.225 kg)
• Minimum verifiable strength is 1400 PSI (10 MPa) to approximately 9000 PSI (62 MPa)
• Quick and easy determination of the strength of concrete
• Manual calculation of the mean rebound number
• Conforms to ASTM C-805

The James Instruments Mini R-Meter System, is an economical hand held unit used for finding the location, estimates either depth, or size of reinforced rebar, post tension cables, copper and conduit

• Rebar Locating Detection and Orientation
• Single sensor for all depth ranges
• Locates up to 8" (200 mm)
• Eddy current design for greater accuracy
